Graphics ProcessingRadeon™ RX 5700
-
Core ClockBoost Clock : Up to 1750 MHz (Reference card is 1725 MHz)
Game Clock : 1720 MHz (Reference card is 1625 MHz)
Base Clock : 1565 MHz (Reference card is 1465 MHz)
*Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. -
Stream Processors2304
-
Process Technology7 nm
-
Memory Clock14000 MHz
-
Memory Size8 GB
-
Memory TypeGDDR6
-
Memory Bus256 bit
-
Memory Bandwidth (GB/sec)448 GB/s
-
Card BusPCI-E 4.0 x 16
-
Digital max resolution7680×4320@60Hz
-
Multi-view4
-
Card sizeL=279.85 W=114.35 H=49.55 mm
-
PCB FormATX
-
DirectX12
-
OpenGL4.6
-
Recommended PSU600W
-
Power Connectors8 Pin*1
-
OutputDisplayPort 1.4 *3
HDMI 2.0b *1 -
AccessoriesQuick Guide
WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning fan, 5 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
PCI-E 4.0 SUPPORT
Gigabyte Radeon RX 5700 XT GAMING OC features PCI-Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI Express 3.0. With the PCI-Express 4.0 supported motherboard, and get ready for the next generation of PC gaming.

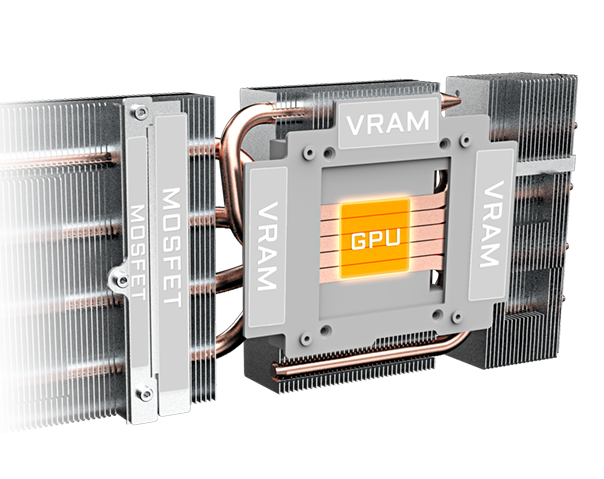

HEAT PIPES DIRECT TOUCH GPU
The shape of the pure copper heat pipes maximize the direct contact area with the GPU, enhancing heat transfer. The heat pipes also cover the VRAM through a large metal plate contact to ensure proper cooling.

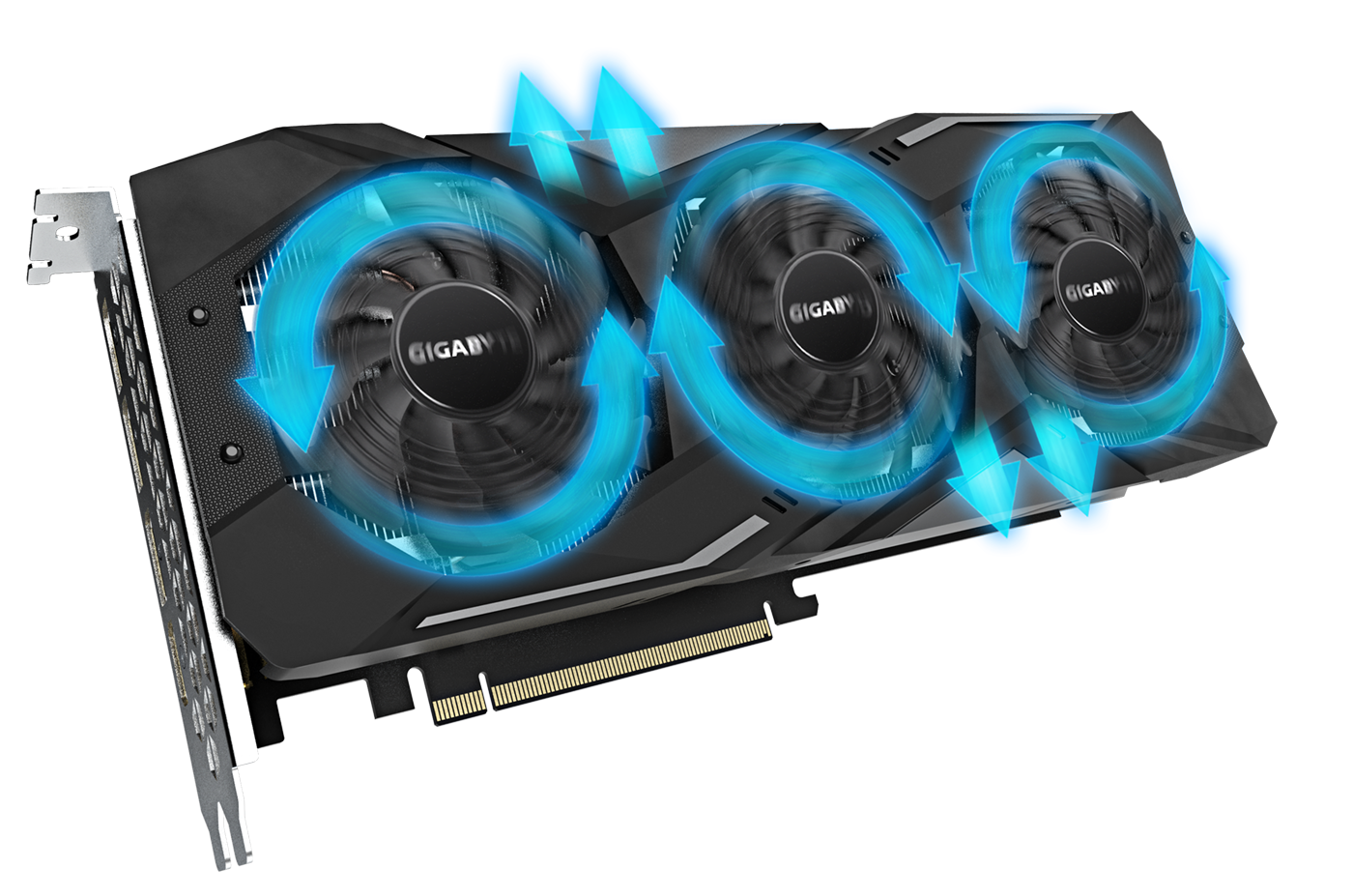

ALTERNATE SPINNING
The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of three fans. The biggest problem with the three fans is turbulence. Since the fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the middle fan in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

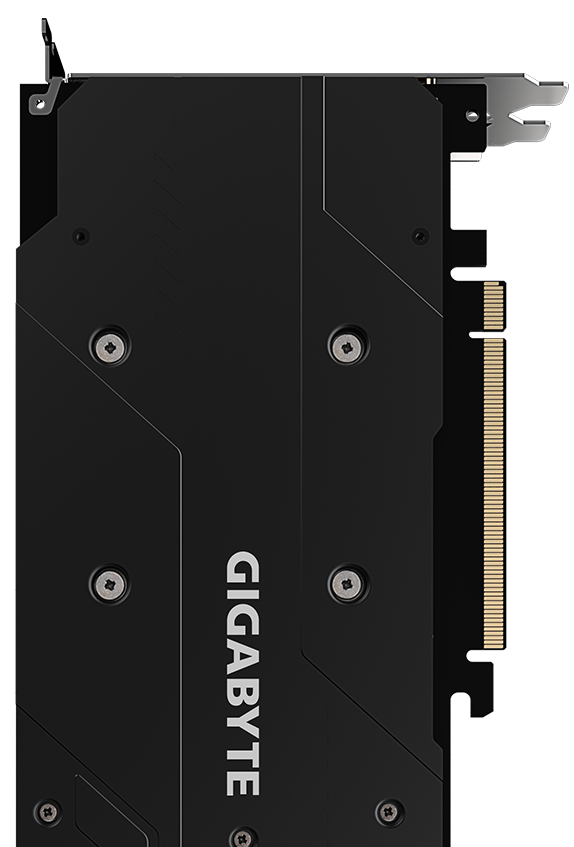

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
